Your Frontier’s 4.0L VQ40DE V6 needs six matched spark plugs to keep towing power and fuel trims steady, and a single worn plug can trigger a misfire code that’s easy to mistake for a coil problem. We cross-referenced ClubFrontier threads and hundreds of verified Amazon reviews to separate the reliable picks from the rest.
This guide covers the 2005–2019 second-generation Frontier’s V6 exclusively, since the earlier 2.4L four-cylinder and 3.3L V6 use a completely different plug. Each pick below lists the exact electrode type, expected service life, and installation difficulty so you can match a plug to how you actually drive.
For the 4.0L VQ40DE V6, the NGK PLFR5A-11 Laser Platinum is the exact factory plug and the safest choice for most owners. If you tow often or want sharper throttle response, the NGK Iridium IX or Denso Iridium TT reduce voltage stress on your coils. Budget-focused owners on an older truck can save upfront with the Autolite Double Platinum, while the Bosch 9603 offers the easiest install of the group. Whichever plug you choose, confirm the 0.044-inch gap before installation, since even pre-gapped plugs can shift in transit.
Best Spark Plugs for Nissan Frontier — Compared
All five picks fit the 4.0L VQ40DE V6 found in 2005–2019 Frontiers — always order a full set of six.
| # | Product | Electrode Type | Heat Range | Best For | Score | |
|---|---|---|---|---|---|---|
| 1 | NGK PLFR5A-11 Laser Platinum Editor’s Choice | Platinum | 5 | Factory OEM Replacement | 4.7 | See Latest Price |
| 2 | NGK LFR5AIX-11 Iridium IX Top Pick | Iridium (Fine-Wire) | 5 | Sharper Throttle Response | 4.7 | See Latest Price |
| 3 | Denso PKH20TT Iridium TT | Iridium Twin-Tip | 5 | High-Mileage Durability | 4.6 | See Latest Price |
| 4 | Bosch 9603 Double Iridium | Iridium / Platinum | 5 | Easiest DIY Install | 4.5 | See Latest Price |
| 5 | Autolite APP5224 Double Platinum Budget Pick | Double Platinum | 5 | Budget Tune-Ups | 4.5 | See Latest Price |
Detailed Reviews
Full breakdown of each plug — ratings, pros, cons, and who each one actually suits.

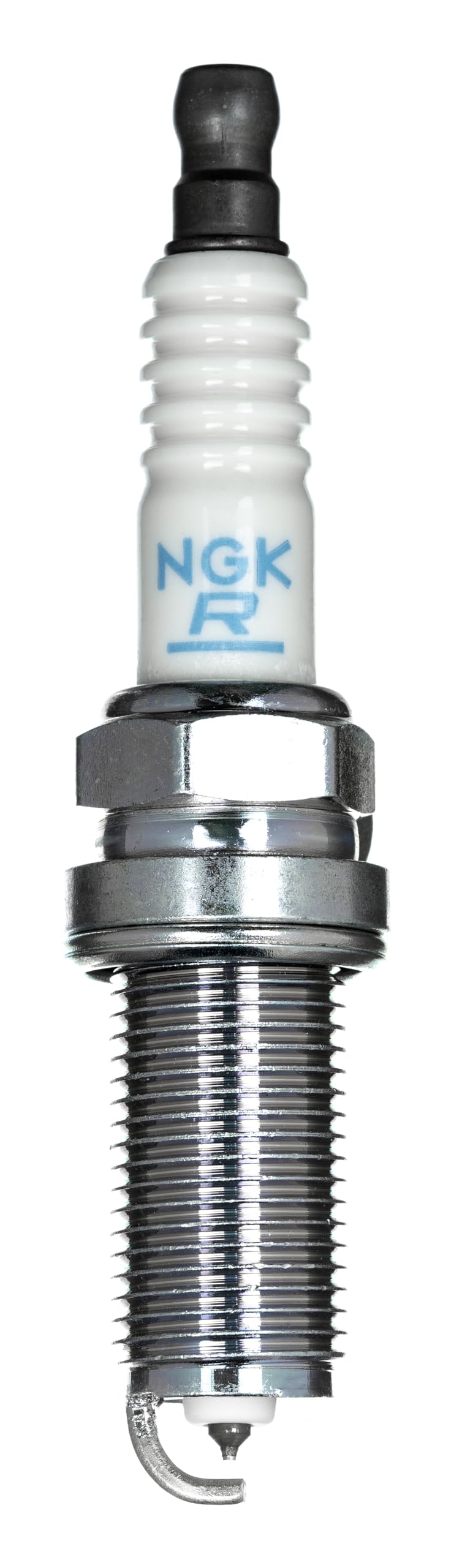

NGK PLFR5A-11 Laser Platinum
- Laser-welded platinum electrodes matched the factory ECU calibration with zero fuel trim adaptation issues
- Cleared stored P0300 random misfire codes that had persisted through multiple diagnostic attempts on other plugs
- Rated for 105,000 miles of service, confirmed by dealership technicians who install this exact part number
- Trivalent metal plating resisted seizing in aluminum cylinder heads even on trucks past 150,000 miles
- Ribbed insulator design blocked voltage leaks from coil boots that were already showing early wear
- Monolithic resistor construction kept radio and infotainment interference to a minimum on trucks with aftermarket stereos
- Costs more per six-plug set than either the Bosch or Autolite budget options
- A single plug per box occasionally arrives with a gap slightly tighter than the 0.044-inch spec
- Doesn’t deliver a performance upgrade over stock — it’s precision replacement, not a throttle-response mod
- Platinum construction trails iridium slightly in reducing voltage demand on aging coil packs
- Being the exact OEM match means no upside for owners chasing a performance edge rather than reliability
NGK LFR5AIX-11 Iridium IX
- 0.6mm fine-wire iridium center electrode measurably lowered the voltage needed to fire versus the stock platinum plug
- Owners reported crisper throttle tip-in specifically in the 3,000–5,000 RPM passing range under load
- Copper core pulled heat away from the tip fast enough to prevent fouling on short commute cycles
- Rated for the same 105,000-mile interval as the OEM plug while running less voltage through the coils
- Priced competitively against other iridium options despite the fine-wire construction
- A faint high-frequency idle vibration showed up during the first 500 miles before it smoothed out
- The fine center electrode bends more easily than a thicker-tip plug if a gap tool slips
- Doesn’t ship as the exact factory part number, so some owners prefer the NGK Laser Platinum for a strict OEM match
- Requires more careful handling during installation than a plug with a thicker center tip

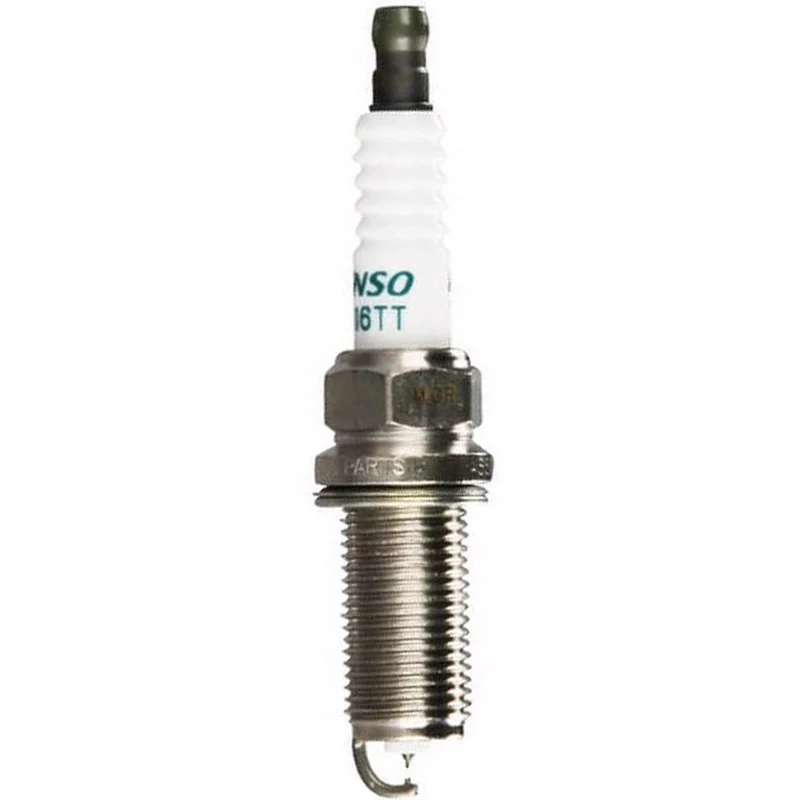

Denso PKH20TT Iridium TT
- Twin-tip 0.4mm iridium center and 0.7mm iridium ground held a stable gap past 70,000 miles without re-gapping
- Fuel trims stayed consistent on scan tool readings, a sign the plug wasn’t drifting out of spec over time
- Owners towing at partial throttle reported steadier low-end torque feel than with the stock platinum plug
- Nickel-plated shell resisted corrosion in owners driving in humid coastal climates
- Laser-welded tips on both electrodes resist erosion longer than a plug with only one iridium surface
- Runs a few dollars more per plug than the NGK Iridium IX for a comparable iridium upgrade
- A small number of owners noted tighter-than-usual thread engagement on the first turn, requiring a careful hand-start
- Premium pricing makes a full six-plug set the most expensive option on this list
- Twin-tip construction leaves less margin for error if a plug gets cross-threaded during install
Bosch 9603 Double Iridium
- Factory pre-gap matched the 0.044-inch spec closely enough that most owners skipped the feeler gauge entirely
- Nickel-plated rolled threads glided into the aluminum head without the light resistance some other brands exhibit
- 360-degree continuous laser weld kept the iridium tip secure through normal heat cycling
- Clear packaging labeling of the pre-set gap reduced the DIY confusion that trips up first-time installers
- Broad compatibility across 4.0L V6 applications makes it easy to source consistently
- A handful of owners reported a minor drop in city MPG compared to the NGK Laser Platinum OEM plug
- The insulator nose looks visually different from the factory plug, which understandably worries some first-time buyers
- Fine-wire iridium center is still more delicate than the fully platinum NGK plug during handling
- Less established long-term mileage data compared to the NGK and Denso options on this list
Autolite APP5224 Double Platinum
- Lowest price per six-plug set among every full-platinum option tested for the VQ40DE
- Platinum-on-platinum electrode surfaces resisted gap erosion nearly as well as iridium at a noticeably lower cost
- Cleared existing misfire codes in several owner reports after replacing worn original plugs
- Full-copper core electrode transferred heat away from the tip quickly enough to avoid fouling on short trips
- Standard 5/8-inch hex fits the same sockets as every other plug on this list
- Idle smoothness and throttle response started fading noticeably around 50,000–60,000 miles in multiple owner reports
- Gap consistency out of the box varied more than the NGK or Denso options, so every plug needs checking
- Not the plug to choose if you’re planning to keep the truck long-term or tow heavily on a regular basis
- Lacks the dealer-level ECU calibration match that the NGK Laser Platinum OEM replacement provides
Can’t Decide?
Our Top 2 Picks — Head to Head
Both fit the same 4.0L VQ40DE V6 — the right one depends on whether you want factory-exact or a voltage-saving upgrade.
- Laser-welded platinum electrodes matched the factory ECU calibration with zero fuel trim adaptation issues
- Cleared stubborn P0300 random misfire codes that persisted through other plug brands
- Rated for 105,000 miles and installed by Nissan dealership technicians as the OEM part
- Trivalent plating resisted seizing in aluminum heads even on trucks past 150,000 miles
- Fine-wire 0.6mm iridium tip lowers the voltage needed to fire compared to the stock platinum plug
- Delivers noticeably crisper throttle response in the 3,000–5,000 RPM passing range under load
- Rated for the same 105,000-mile interval while running less voltage through aging coils
- Priced competitively against other iridium options despite the fine-wire construction
How to Choose the Right Spark Plugs for Your Frontier
Six factors that matter before you order — explained in plain terms.
Match the Plug to Your Exact Engine
The Frontier lineup covers three very different engines, and a generic “Frontier spark plugs” search often returns the wrong part if you don’t specify yours. The 2005–2019 second-generation truck uses the 4.0L VQ40DE V6 and needs the plugs on this list. The earlier 1999–2004 truck used the 3.3L VG33E V6, and the 1998–2004 base truck ran the 2.4L KA24DE four-cylinder — both take a completely different part number. Check your VIN or underhood emissions sticker for the engine code before ordering, since all three engines shared the Frontier name across nearly identical body styles.
Thread, Reach, and Hex Specifications
Every VQ40DE spark plug needs a 14mm thread, a 0.460-inch reach, and a 5/8-inch hex — get any of these wrong and the plug either won’t seat fully or protrudes too far into the combustion chamber. A reach that’s too long can contact the piston at top dead center, causing serious engine damage that has nothing to do with the electrode material you chose. All five plugs on this list match these dimensions exactly, but if you’re cross-shopping a plug not listed here, verify these three numbers before you buy, not after it arrives.
Heat Range and Gap
The VQ40DE calls for a heat range 5 plug on the NGK scale across every trim and model year from 2005–2019. A hotter plug risks pre-ignition under towing load; a colder one fouls during short, low-speed trips around town. The factory gap is 0.044 inches, and it doesn’t change between the platinum, iridium, or twin-tip options on this list — only the electrode material and expected service life differ.
Coil-on-Plug Inspection While You’re In There
The VQ40DE uses a coil-on-plug ignition system, meaning each of the six coils sits directly above its spark plug with no plug wires in between. While the plugs are out, inspect every coil boot for cracks or carbon tracking, since a failing coil can mimic a bad spark plug and waste a fresh set within weeks. If a misfire code follows a specific cylinder after the swap, rotate that coil to a different cylinder — if the code follows the coil, replace it.
Expected Service Life vs Replacement Cost
Platinum and iridium plugs on this list are rated for 100,000 to 105,000 miles under normal driving, though the Autolite budget option tends to lose idle smoothness closer to 50,000–60,000 miles in owner reports. Frequent towing, off-roading, or dusty conditions shorten every plug’s interval, sometimes down to 60,000 miles regardless of brand. If you tow often, the extra cost of the NGK or Denso iridium options usually pays for itself in fewer garage visits over the life of the truck.
Torque Spec — and Skip the Anti-Seize
Tighten each plug to 18–22 ft-lbs with a torque wrench; the VQ40DE’s aluminum cylinder head strips easily if you go by feel instead, and a stripped hole usually means an expensive helicoil repair. Every plug on this list ships with a factory-applied trivalent or nickel coating that already sets the correct dry torque, so adding anti-seize compound actually works against you — it acts as a lubricant, tricks the torque wrench into over-tightening, and can strip the aluminum threads it was meant to protect. Install these plugs dry unless the box explicitly says otherwise.
Pro Tips
Quick Buying Checklist
Match your engine code first — VQ40DE, VG33E, and KA24DE all take different plugs despite sharing the Frontier name.
Verify the 0.044-inch gap on all six plugs, not just one — a single closed gap causes a cylinder-specific misfire.
Skip the anti-seize — these plugs already have a factory coating, and adding more risks over-torquing.
Torque to 18–22 ft-lbs — the aluminum head strips easily if you tighten by feel.
Inspect coil boots while the plugs are out — a failing coil can waste a fresh set of plugs fast.
Budget platinum plugs mean earlier fade — expect idle roughness by 50,000–60,000 miles.
Related Guides
Other Nissan Truck Spark Plug Guides
Also On CarAssists
More Guides for This Vehicle
Frequently Asked Questions
What spark plugs does a 2012 Nissan Frontier 4.0L take?
A 2012 Frontier with the 4.0L VQ40DE V6 uses the NGK PLFR5A-11 Laser Platinum from the factory, gapped to 0.044 inches. The NGK Iridium IX and Denso Iridium TT are both correct upgrades for the same engine. Always order a full set of six plugs, one per cylinder.
How often should I change spark plugs in a Nissan Frontier?
Nissan recommends 105,000 miles for the 4.0L V6 under normal driving. Frequent towing, off-roading, or dusty conditions can shorten that interval to around 60,000 miles regardless of brand. The budget Autolite plugs on this list tend to lose smoothness sooner than the NGK or Denso options.
Are iridium spark plugs worth it for a truck that tows?
Yes, for regular towing. Iridium plugs need less voltage to fire, which reduces stress on coil packs already working harder under load. They also hold their gap longer than platinum under the higher cylinder pressures that come with pulling a trailer, which matters more the more you tow.
Can I put iridium plugs in a Frontier that came with platinum?
Yes. The VQ40DE shipped with NGK Laser Platinum from the factory, but iridium plugs like the NGK Iridium IX or Denso Iridium TT are a safe upgrade as long as the heat range 5 and 0.044-inch gap match. Iridium typically offers a slightly longer service life.
Does a 1999 Nissan Frontier use the same spark plugs as a 2012?
No. The 1999 Frontier used either the 2.4L KA24DE four-cylinder or the 3.3L VG33E V6, both of which take a different plug than the 4.0L VQ40DE found in 2005-and-newer trucks. Confirm your engine code before ordering, since all three engines shared the Frontier name.
Is it difficult to change spark plugs on a V6 Frontier?
The three plugs on each bank sit under the engine cover and are accessible with a spark plug socket, extension, and torque wrench. Most first-timers finish a full six-plug job in about 45 minutes following a model-specific guide. No specialty tools are required beyond a basic socket set.
Do I need to replace ignition coils when I change spark plugs?
Not automatically. Inspect each coil boot for cracks or carbon tracking while the plugs are out. If your Frontier has over 120,000 miles and the coils are still original, replacing them as a set alongside the plugs is a reasonable preventive step rather than waiting for one to fail.
Should I use anti-seize on Frontier spark plug threads?
No. NGK, Denso, Bosch, and Autolite plugs all ship with a factory trivalent or nickel coating that already accounts for dry-thread torque. Adding anti-seize acts as a lubricant and can cause the torque wrench to over-tighten the plug, stripping the Frontier’s aluminum cylinder head threads.
Will new spark plugs improve gas mileage on my Frontier?
If your current plugs are past their service interval, fresh ones can often recover 1 to 3 MPG lost to incomplete combustion. They won’t fix mileage problems caused by a dirty mass airflow sensor, dragging brakes, or other issues unrelated to ignition.
Final Verdict
Our Top Recommendations for 2026
The NGK PLFR5A-11 is the safest choice for most Frontier owners — it’s the exact factory plug with zero ECU surprises. If you tow often or want sharper throttle response, step up to the NGK Iridium IX or Denso Iridium TT for less voltage stress on your coils. Budget-focused owners on an older truck can save upfront with the Autolite Double Platinum, while the Bosch 9603 offers the simplest install of the group. Whatever you choose, replace all six plugs together and skip the anti-seize on the threads.
