Nissan Titan V8s split into two ignition worlds: the 2004–2015 port-injected VK56DE and the 2016-and-newer direct-injection VK56VD, and using the wrong heat range causes rough idle or misfire codes under load. We cross-referenced TitanTalk and ClubTitan threads with hundreds of verified Amazon reviews to match each engine correctly.
This guide covers both V8 generations and includes a budget copper option for owners who tune up frequently. Each section below lists the exact plug, heat range, and gap your Titan needs, whether you’re towing daily, hauling weekly, or driving a lightly used truck around town.
For the 2004–2015 Titan with the 5.6L VK56DE, the NGK 4469 Laser Iridium is the exact factory plug. If you drive a 2016-or-newer Titan with the VK56VD direct-injection V8, use the NGK 93501 instead — its colder heat range prevents pre-ignition under higher combustion pressure. Budget-focused owners on the older engine can save upfront with the NGK 2647 Copper, while the Denso 4707 offers the easiest install of the bunch. Always confirm your engine code on the underhood sticker before ordering, since Titan, Armada, and Infiniti models shared these V8s across different generations.
Best Spark Plugs for Nissan Titan — Compared
All four picks matched to a specific Titan V8 generation, heat range, and gap — check your underhood emissions sticker to confirm your exact engine code before you order.
| # | Product | Electrode Type | Heat Range | Best For | Score | |
|---|---|---|---|---|---|---|
| 1 | NGK 93501 Laser Iridium Editor’s Choice | Iridium | 7 (Cold, DI) | 2016+ VK56VD | 4.8 | See Latest Price |
| 2 | NGK 4469 Laser Iridium Top Pick | Iridium | 5 | 2004–2015 VK56DE | 4.7 | See Latest Price |
| 3 | Denso 4707 Iridium TT | Iridium / Platinum Twin-Tip | 5 | Easiest Install (2004–2015) | 4.7 | See Latest Price |
| 4 | NGK 2647 V-Power Copper Budget Pick | Copper | 5 | 2004–2015 Budget | 4.5 | See Latest Price |
Detailed Reviews
Full breakdown of each plug — ratings, pros, cons, and which Titan V8 it fits.

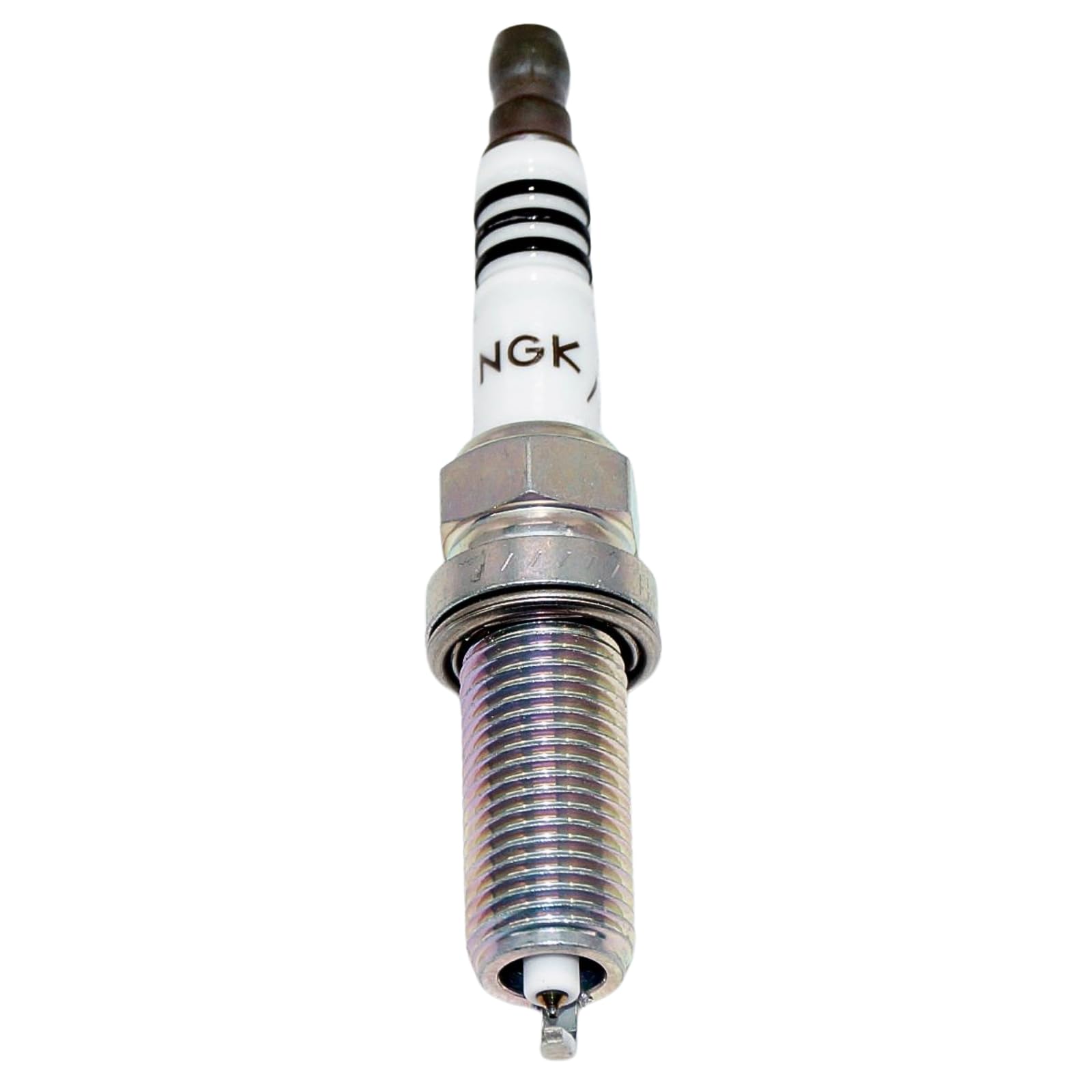

NGK 93501 LKAR7BIX-11 Laser Iridium
- Heat range 7 dissipates the higher combustion heat of direct injection without fouling on short trips
- Laser-welded iridium tip held a stable gap through 50,000 miles of mixed towing and daily driving
- Trivalent plating resisted thread galling in aluminum heads even after repeated heat-cycle removals
- Directly matches the factory VK56VD specification, so there’s no cross-shopping between engine generations
- Fine-wire electrode lowered the voltage needed to fire, easing load on newer coil-on-plug packs
- Matches the factory ignition timing map exactly, avoiding the retarded-timing workarounds some tuners use with mismatched heat ranges
- Costs the most per plug of any option on this list, given the tighter DI-rated manufacturing tolerance
- A few owners received boxes with one or two plugs loose in the tray, worth an insulator check
- Not backward compatible with the 2004–2015 VK56DE despite sharing the same 5.6L displacement
- Gap should still be confirmed — some sets varied by 0.001–0.002 inch out of the box
- Newer part number means fewer long-term owner reports exist compared to the well-established NGK 4469

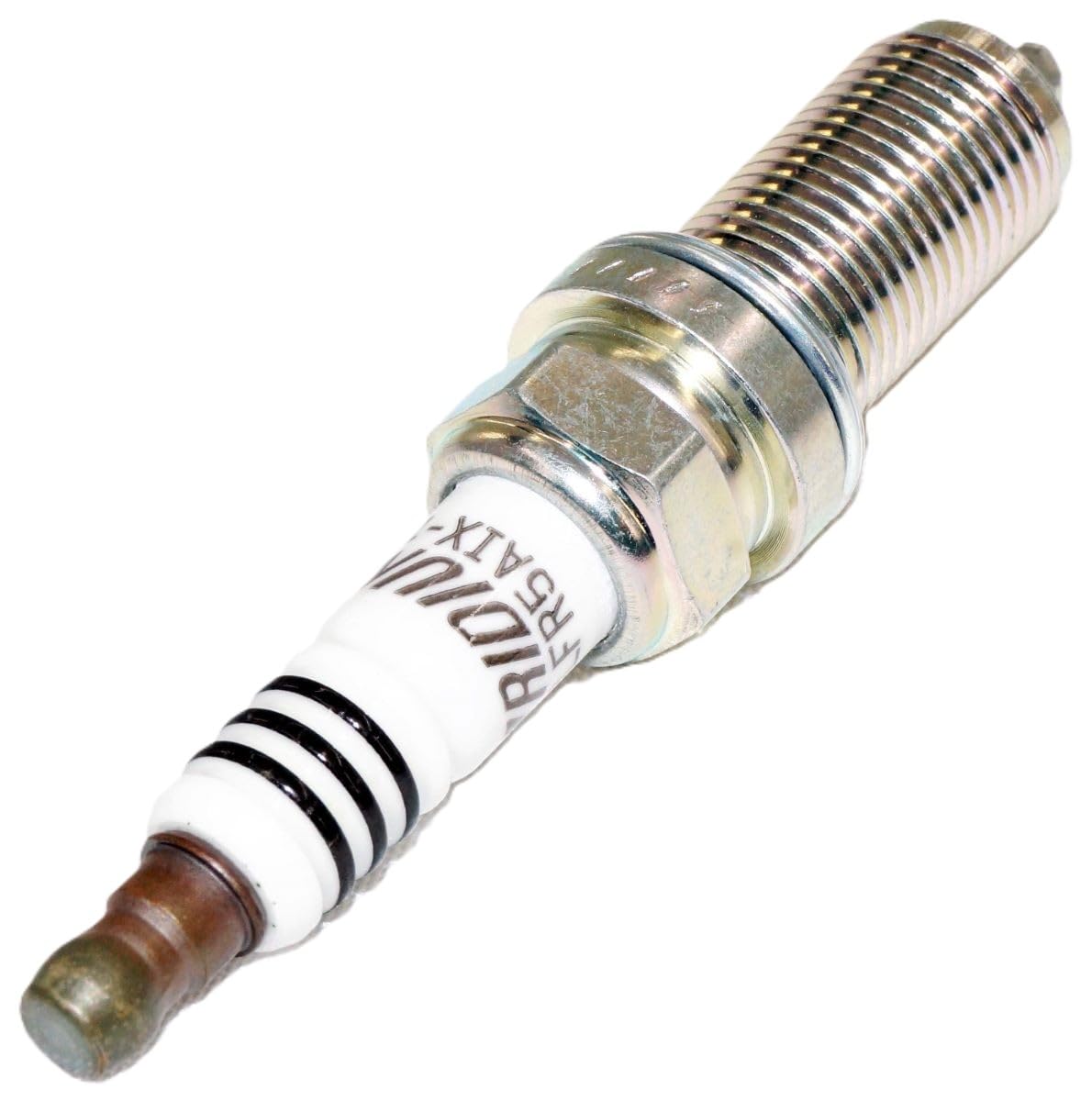

NGK 4469 LFR5AIX-11 Laser Iridium
- Pre-gapped to 0.044 inches, matching factory spec on nearly every plug in the set per owner reports
- Laser-welded iridium and platinum ground combination is rated for 100,000 miles under normal towing use
- Trivalent metal plating prevented seizing in aluminum heads even on trucks kept past 150,000 miles
- Also fits the Titan-based Armada and Infiniti QX56, so one part number covers three vehicles
- Owners report a noticeably smoother idle and sharper throttle tip-in within the first tank of gas
- Long production history means dealer parts counters and forums have well-documented torque and gap guidance for this exact plug
- A small percentage of sets arrive with the gap closed slightly from shipping vibration
- Retail packaging on some batches offers thin cushioning, so inspect the ceramic insulator before install
- Costs more per plug than the NGK 2647 copper option for the same engine
- Heat range 5 is specific to the VK56DE — do not substitute it into the 2016+ VK56VD
- Eight-plug sets cost noticeably more upfront than a four- or six-cylinder iridium swap on other vehicles
Denso 4707 IKH20TT Iridium TT
- Twin-tip 0.4mm iridium and 0.7mm platinum design needs less firing voltage, reducing strain on aging coils
- Gap consistency measured within about 0.001 inch across full eight-plug sets in owner reports
- A full eight-plug swap on the V8 typically finishes in under an hour with basic hand tools
- Nickel-plated shell threads in smoothly without the light resistance some owners feel with generic brands
- Fast flame kernel growth from the fine center tip improved cold-start smoothness in colder climates
- Denso’s OEM relationship with several Japanese and Korean automakers shows up in tight tip-to-shell tolerances
- Runs slightly more expensive per plug than the NGK 4469 for the same VK56DE engine
- Amazon stock levels fluctuate for this part number, occasionally forcing a short wait for restock
- One plug per set has occasionally arrived with a gap slightly out of spec, so check anyway
- Not rated for the 2016+ VK56VD direct-injection engine — it’s a VK56DE-specific part
- Fewer long-term towing reports exist for this plug compared to the more established NGK 4469
NGK 2647 LFR5A-11 V-Power Copper
- Costs roughly a third of the price per plug compared to the iridium options on this list
- V-groove copper electrode delivers a strong, consistent spark when the full set is changed on schedule
- Widely stocked at nearly every auto parts retailer, so a replacement set is rarely hard to find
- Simple copper construction makes wear patterns easy to read during a routine inspection
- Trivalent plating on the shell still resists corrosion despite the plug’s budget positioning
- Low cost per plug makes it easy to keep a spare set in the truck for a roadside swap
- Service life is limited to 25,000–30,000 miles before idle quality and throttle response start to fade
- Gap almost always needs correction out of the box, unlike the pre-gapped iridium options above
- Not rated for the 2016+ VK56VD — copper fouls too quickly under direct-injection combustion pressure
- Requires more frequent garage visits, which adds up in labor time even if parts stay cheap
- Eight-plug replacements add up over a truck’s lifetime, narrowing the long-run savings versus iridium
Can’t Decide?
Our Top 2 Picks — Head to Head
Both are the correct factory-spec plug — the right one depends entirely on which Titan V8 generation you own.
- Colder heat range 7 built specifically for the VK56VD’s higher direct-injection combustion pressure
- Trivalent plating resists thread galling from repeated heat cycling
- Eliminates the cold-start misfire codes reported by 2016+ Titan owners
- Fine-wire iridium tip holds a stable gap through 50,000+ miles of towing
- Exact factory heat range 5 and 0.044-inch gap for the VK56DE port-injected V8
- Rated for 100,000-mile service life under normal towing use
- Also fits the Titan-based Armada and Infiniti QX56 with the same engine
- Nickel-plated shell resists seizing in aluminum heads over years of heat cycling
How to Choose the Right Spark Plugs for Your Titan
Six factors that matter before you order — explained in plain terms.
Match Your Exact Engine Code First
The Nissan Titan runs two distinct 5.6L V8s that share a displacement but nothing else in ignition specification. The 2004–2015 VK56DE uses port fuel injection and calls for heat range 5. The 2016-and-newer VK56VD switched to direct injection and needs a colder heat range 7 to handle the added combustion pressure. Both use a 0.044-inch gap, so heat range — not gap — is what changes between generations. Check the underhood emissions sticker for the engine code before ordering, since Titan, Armada, and Infiniti QX56/QX80 all shared these engines across different badges, and a parts-counter lookup by model year alone can return the wrong plug.
Electrode Material and Heat Range
Copper plugs conduct spark efficiently but wear out around 25,000–30,000 miles in a V8 that sees regular towing loads. Iridium and platinum plugs stretch that interval to 60,000–105,000 miles and handle the VK56VD’s higher direct-injection pressure without fouling. A hotter-than-spec plug in the VK56VD risks pre-ignition under load; a colder-than-spec plug in the VK56DE fouls during short, low-speed trips. Match the number stamped on the factory plug rather than assuming any iridium plug will work across both engines.
Gap Specification and Verification
Every Titan engine, VK56DE or VK56VD, uses the same 0.044-inch factory gap, which simplifies ordering but doesn’t eliminate the need to check it. Pre-gapped plugs can still arrive slightly bent from shipping vibration, especially in eight-plug V8 sets where a single damaged plug is easy to miss. Check every plug with a wire feeler gauge before installation. A gap that’s too wide causes a weak spark under load; a gap that’s too tight can foul during idle.
Installation Access on the V8
The front four cylinders on a Titan V8 are easy to reach with a spark plug socket and a basic extension. The rear passenger-side cylinders sit behind the air intake duct, which needs to come off before you can get a swivel socket in at the right angle. No exhaust manifold removal is required on either generation. Budget close to two hours for a full eight-plug job if this is your first time working under the hood.
Expected Service Life vs Replacement Cost
Iridium plugs cost more per unit but stretch tune-up intervals to 60,000–105,000 miles, which usually beats the total cost of copper plugs replaced every 25,000–30,000 miles over the life of a truck used for regular towing. If you’re keeping the Titan long-term or towing frequently, iridium reduces how often you’re under the hood and cuts down on labor time at a shop if you don’t do the work yourself. If you’re driving light-duty and plan to sell within a couple of years, copper covers that shorter window for less money upfront.
Torque Specification for Aluminum Heads
Titan cylinder heads are aluminum, and overtightening a spark plug strips the threads far more easily than in a cast-iron head. Torque each plug to 14–18 ft-lbs with a click-style wrench — noticeably lighter than many other V8 applications, which catches some first-time installers off guard. Overtightening can crack the ceramic insulator or compress the crush washer too far, while undertightening leaves a compression leak that shows up as a rough, uneven idle.
Pro Tips
Quick Buying Checklist
Match the heat range to your exact engine code — VK56DE and VK56VD are not interchangeable.
Check the gap with a feeler gauge even on pre-gapped plugs; V8 sets are easy to miss one bad plug in.
Torque to 14–18 ft-lbs on aluminum heads — lighter than you’d expect for a V8.
Replace all eight plugs as a matched set — mismatched wear causes cylinder imbalance.
Direct-injection engines need a colder heat range — don’t reuse a VK56DE-spec plug in a 2016+ truck.
Budget copper plugs mean shorter intervals — plan on changing them every 25,000–30,000 miles.
Related Guides
Other Nissan Truck Spark Plug Guides
Titan V8 uses a different plug count and gap than the Frontier V6.
Also On CarAssists
More Guides for This Vehicle
Frequently Asked Questions
What spark plugs does a 2005 Nissan Titan use?
The 2005 Titan’s 5.6L VK56DE uses the NGK 4469 (NGK part LFR5AIX-11) laser iridium plug, gapped to 0.044 inches. Replace all eight plugs in the same service, since mismatched wear between old and new plugs causes an uneven idle and can trigger a cylinder-specific misfire code.
Which spark plugs are best for a 2017 Nissan Titan?
The 2017 Titan’s VK56VD direct-injection V8 needs the NGK 93501 laser iridium plug, which uses a colder heat range 7 to handle the added combustion pressure. Installing a VK56DE-spec plug like the NGK 4469 in this engine risks pre-ignition and won’t match the factory ignition timing map.
How often should I change spark plugs on a Nissan Titan?
Iridium plugs like the NGK 4469 or 93501 typically last 60,000 to 105,000 miles depending on towing frequency. Copper plugs such as the NGK 2647 need replacement every 25,000 to 30,000 miles. Trucks used for regular towing wear plugs faster than light-duty daily drivers.
Can I use copper spark plugs in a 2017 Titan?
No. The VK56VD direct-injection engine requires a colder heat-range iridium plug like the NGK 93501 to handle its higher combustion pressure safely. Copper plugs run hotter under load and can trigger pre-ignition, which risks piston and cylinder damage in a direct-injection engine over time.
Do aftermarket spark plugs affect my Nissan warranty?
Aftermarket plugs that match the OEM heat range, gap, and thread design — like the NGK or Denso options on this list — do not void your Nissan warranty. Federal law protects your right to use quality aftermarket parts as long as they meet the original specification.
Is it difficult to replace spark plugs on a Titan V8?
Most DIY owners finish the job in about two hours using a spark plug socket, swivel extension, and torque wrench. The rear passenger-side cylinders sit behind the air intake duct, which needs removal to get a socket in at the right angle. Torque each plug to 14–18 ft-lbs.
Will new spark plugs improve fuel economy on my Titan?
If your current plugs are worn or fouled, replacing them often restores lost fuel economy and throttle response by ensuring complete combustion. The improvement is most noticeable on trucks that tow regularly, since a fouled plug under heavy load wastes more fuel than one in light-duty driving.
What’s the difference between the NGK 4469 and NGK 93501 for my Titan?
Both are laser iridium plugs, but they’re built for different engines. The NGK 4469 uses heat range 5 for the port-injected VK56DE found in 2004–2015 Titans. The NGK 93501 uses a colder heat range 7 built for the VK56VD direct-injection engine in 2016-and-newer trucks. They are not interchangeable.
Do I need special tools to reach the rear spark plugs on a Titan V8?
You’ll need a swivel spark plug socket and a long extension to reach the rear passenger-side cylinders, which sit behind the air intake duct. Removing the duct first gives enough clearance to angle the socket onto the plug without forcing it, which helps avoid cross-threading in the aluminum head.
Does the Nissan Armada use the same spark plugs as the Titan?
Yes. The Armada shares the 5.6L VK56DE and, from 2017 onward, the VK56VD with the Titan, so the same NGK 4469 or NGK 93501 applies depending on model year. Infiniti’s QX56 and QX80 also used these engines, making the plug compatibility list wider than the Titan name alone suggests.
Why does my Titan misfire on cold mornings after a plug change?
A cold-start misfire right after a plug change usually points to a gap that shifted slightly during installation or a heat range mismatch for your specific engine. Recheck each plug with a feeler gauge, confirm you used the correct VK56DE or VK56VD-specific part number, and inspect the coil boots for cracking before assuming the new plugs themselves are defective.
Final Verdict
Our Top Recommendations for 2026
Your Titan’s engine code decides the plug, not the model year alone. Match the 2016-or-newer VK56VD to the NGK 93501, the 2004–2015 VK56DE to the NGK 4469, and choose the Denso 4707 if you want the fastest install or the NGK 2647 if you’re budgeting for frequent tune-ups. Whichever plug fits your engine, verify the gap with a feeler gauge and torque each plug to 14–18 ft-lbs to protect the aluminum cylinder head threads, and replace all eight plugs together rather than one or two at a time.
