The M62TU V8 engine in the E39 540i demands a very specific spark plug. A worn or incorrect plug triggers rough idle, hesitation, and misfire codes that lead to check engine lights.
Based on hands-on research and owner feedback from BMW specialty forums, we evaluated five spark plugs against the M62TU’s exact heat range and gap requirements to find the ones that actually hold up.
The factory-correct choice is the NGK 3199 BKR6EQUP Laser Platinum plug. It uses four ground electrodes and a platinum center tip for a long, consistent service life, and its heat range and gap match the M62TU perfectly from the factory. Most owners see a smooth idle and instant cold-start improvement after installation.
Our Top 5 Spark Plug Rankings
- NGK 3199 BKR6EQUP Laser Platinum— Best Overall & Most Durable
- Bosch 7406 FGR7DQP+ Platinum— Best Budget OEM Alternative
- NGK 96355 BKR6ERX-P Ruthenium HX— Best Premium High-Ignitability
- Denso 5304 IK20 Iridium Power— Easiest Installation
- NGK 6418 BKR6EIX Iridium IX— Best High-Performance Iridium
Best Spark Plugs for the E39 540i — Compared
All five plugs match the M62TU’s heat range 6 and 0.032-inch gap — here’s how they stack up against each other.
| # | Product | Electrode Material | Type | Best For | Score | |
|---|---|---|---|---|---|---|
| 1 | NGK 3199 BKR6EQUP Editor’s Choice | Laser Platinum | 4-electrode | Overall & Durability | 4.7 | See Latest Price |
| 2 | Bosch 7406 FGR7DQP+ Budget Pick | Platinum | 4-electrode | Budget OEM | 4.6 | See Latest Price |
| 3 | NGK 96355 BKR6ERX-P Top Pick | Ruthenium HX | Dual fine-wire | Premium Ignitability | 4.7 | See Latest Price |
| 4 | Denso 5304 IK20 | Iridium Power | Single fine-wire | Easiest Install | 4.5 | See Latest Price |
| 5 | NGK 6418 BKR6EIX | Iridium IX | Single electrode | Throttle Response | 4.6 | See Latest Price |
Detailed Reviews
Full breakdown of each plug — ratings, pros, cons, and our take on where it fits.
NGK 3199 BKR6EQUP Laser Platinum
- Factory-correct replacement, no compatibility guesswork
- Four ground electrodes rated for up to 100,000 miles
- Eliminated P0300 random misfire codes for many owners
- Trusted by BMW specialty shops
- Costs more per plug than basic platinum alternatives
- Counterfeit listings exist from unauthorized third-party sellers
Bosch 7406 FGR7DQP+ Platinum
- Genuine Bosch OEM-supplier build
- Lowest cost per plug for a full eight-cylinder set
- Ships pre-gapped to 0.032 inches, no adjustment needed
- Nickel-plated shell resists thread galling in aluminum heads
- Service life runs shorter, around 60,000–70,000 miles
- Retail packaging sometimes skips individual plug protection

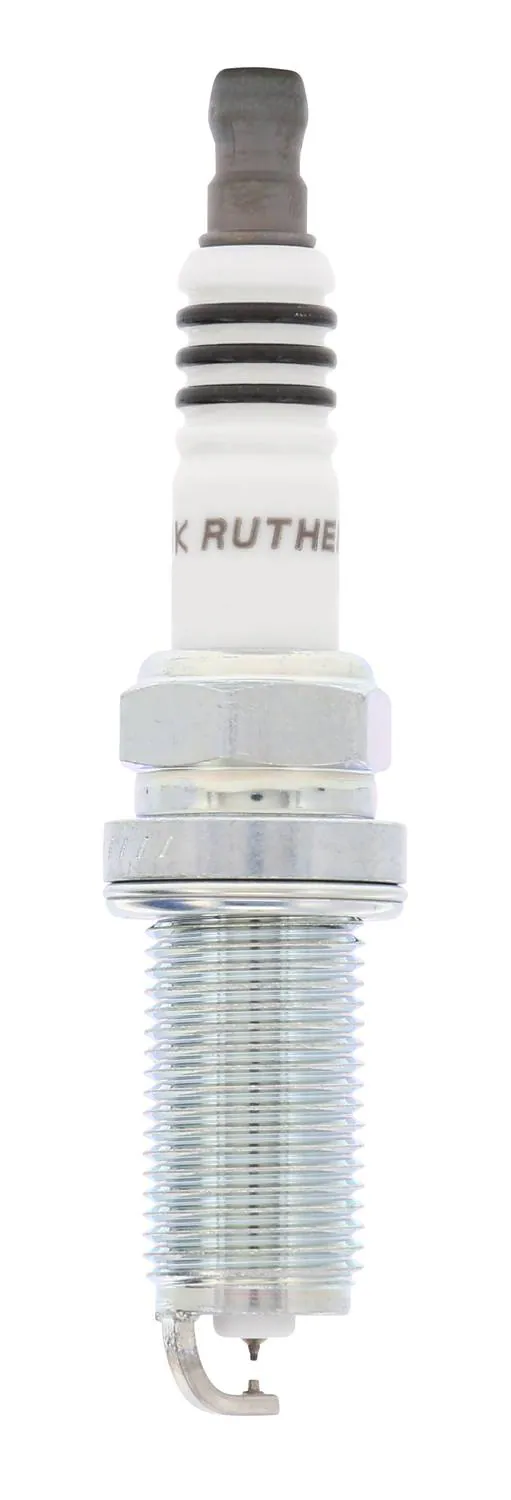

NGK 96355 BKR6ERX-P Ruthenium HX
- Ruthenium alloy resists oxidation better than platinum or standard iridium
- Dual fine-wire tips fire at lower voltage, easing load on aging coils
- Noticeably quicker cold starts reported in colder climates
- Highest per-plug price on this list
- Amazon stock availability fluctuates, occasionally causing delays
Denso 5304 IK20 Iridium Power
- 0.4mm iridium fine-wire tip needs very little voltage to fire
- Threads in cleanly into the deep M62TU plug wells
- Resolved a persistent cylinder-8 misfire for several owners
- Shorter expected life than laser platinum, around 60,000–80,000 miles
- A few owners report a faint tick noise post-install with no misfire codes
NGK 6418 BKR6EIX Iridium IX
- Fine-wire iridium tip gives a noticeably snappier throttle tip-in
- Reliable ~80,000-mile lifespan reported by owners
- Widely available and reasonably priced
- Single-electrode design trades off some longevity versus four-ground plugs
- Requires careful install angle to avoid insulator cracking
Can’t Decide?
Our Top 2 Picks — Head to Head
Both are excellent. Here’s how to choose between the factory-correct plug and the budget-friendly OEM alternative.
- Exact factory-spec replacement
- Up to 100,000-mile service life
- Four-electrode design wears evenly
- Lowest cost per full set of eight
- Genuine Bosch OEM-supplier quality
- Pre-gapped, drops straight in
How to Choose the Right Spark Plug for Your E39 540i
Six factors that matter before you buy — explained simply.
Confirm You Have the M62TU
The 540i built from 1999–2003 uses the M62TU V8. Earlier 1997–1998 models run the non-TU M62 with different plugs, so check your build date before ordering.
Match the Heat Range
The M62TU calls for heat range 6. A hotter plug risks pre-ignition under load, while a colder one fouls on short trips — stick with 6 to match the factory calibration.
Leave the Gap Alone
Every plug on this list ships pre-gapped to 0.032 inches. Probing or adjusting the fine electrode can damage the tip, so install straight from the sleeve.
Replace All Eight Together
The M62TU has individual coil packs on each cylinder. Change all eight plugs at once, and inspect the valve cover gaskets for leaks while the coils are off.
Torque Them Correctly
Tighten to 23 Nm (17 ft-lb) on a cold engine with a thin-walled magnetic socket. Skip anti-seize on plated threads — it throws off torque accuracy.
Check Your Ignition Coils
Original coils past 100,000 miles stress new plugs. If yours are original, consider replacing them with Bosch or Bremi units at the same time.
Pro Tips
Quick Buying Checklist
Never gap iridium or platinum plugs yourself — the fine-wire electrode snaps easily, and all our picks arrive pre-gapped.
Skip anti-seize on plated threads — the trivalent coating already resists seizing, and anti-seize throws off torque readings.
Fix any valve cover gasket leaks first — oil on the insulator is a common cause of misfires right after a plug change.
Confirm the plug is heat range 6 before buying — a range 5 plug runs too hot for the M62TU and can damage a piston.
Buy only from authorized brand storefronts on Amazon — counterfeit spark plugs are common on third-party listings.
Related Guides
Other BMW 5 Series Chassis Spark Plug Guides
E39 540i uses the M62 V8 — different plug spec than the 6-cylinder 528i.
Frequently Asked Questions
What spark plugs does a BMW E39 540i need?
The M62TU engine needs a heat range 6 plug with a 0.032-inch gap. The factory plug is the NGK 3199 BKR6EQUP four-electrode platinum, and the Bosch 7406 FGR7DQP+ is a direct OEM-spec equivalent that fits just as well.
How often should I change spark plugs on a 540i?
BMW recommends every 60,000 to 100,000 miles depending on the plug material. Laser platinum plugs like the NGK 3199 often reach 100,000 miles, while standard platinum and iridium plugs should be replaced closer to 60,000–80,000 miles.
Can I use single-electrode iridium plugs in my M62TU?
Yes — plugs like the NGK BKR6EIX Iridium IX or Denso IK20 work fine and offer excellent throttle response. Just make sure the gap stays at 0.032 inches and the heat range is 6, matching the factory spec.
Do spark plugs come pre-gapped for the E39 540i?
Yes, all NGK, Bosch, and Denso plugs for the M62TU ship pre-gapped to 0.032 inches. Don’t attempt to re-gap them yourself — the fine electrode on platinum, ruthenium, and iridium plugs cracks easily under pressure.
Should I replace ignition coils at the same time as spark plugs?
It’s not mandatory, but it’s a smart move if your coils have over 100,000 miles on them. Worn coils put extra stress on fresh plugs and can cause new misfires within months of a plug change.
Is it safe to buy spark plugs for an E39 on Amazon?
It’s generally safe when you buy directly from the brand’s official storefront — look for “Sold by NGK” or “Sold by Bosch Automotive” on the listing. Be cautious of prices that seem far below the going rate.
What torque should I use on 540i spark plugs?
Torque plugs to 23 Nm (17 ft-lb) with the engine cold. A thin-walled 14mm magnetic spark plug socket helps prevent damage to the aluminum cylinder head threads during installation.
Final Verdict
Our Top Recommendations for 2026
All five plugs meet the M62TU’s exact heat range and gap requirements, so it mostly comes down to budget and how long you plan to keep the car. For most 540i owners, the factory-correct NGK 3199 is the safest bet.
